Nano Board
Nano Board
SKU: 945-NB12
Couldn't load pickup availability
Shipping and applicable taxes will be calculated at checkout or on your quote.

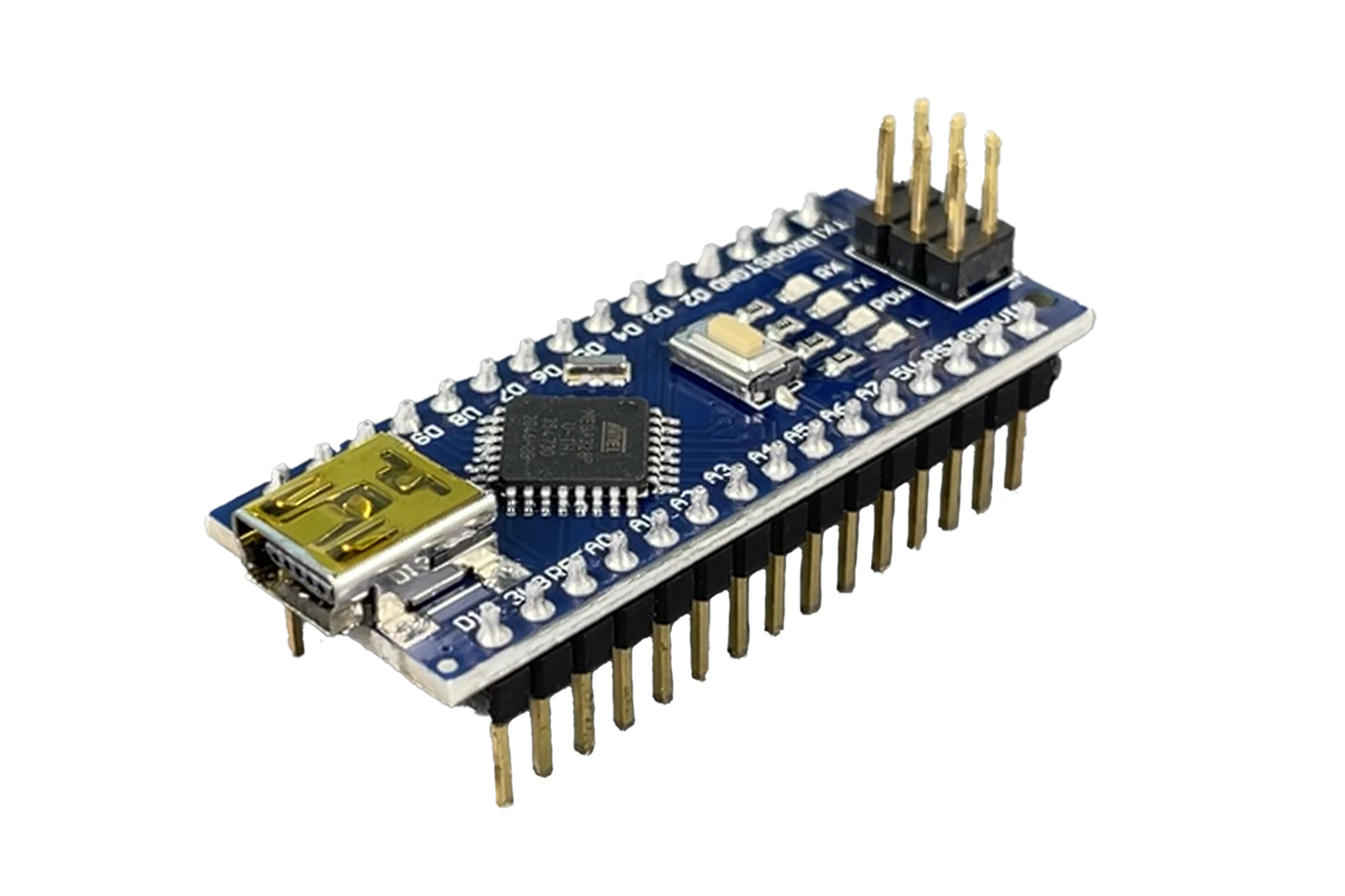

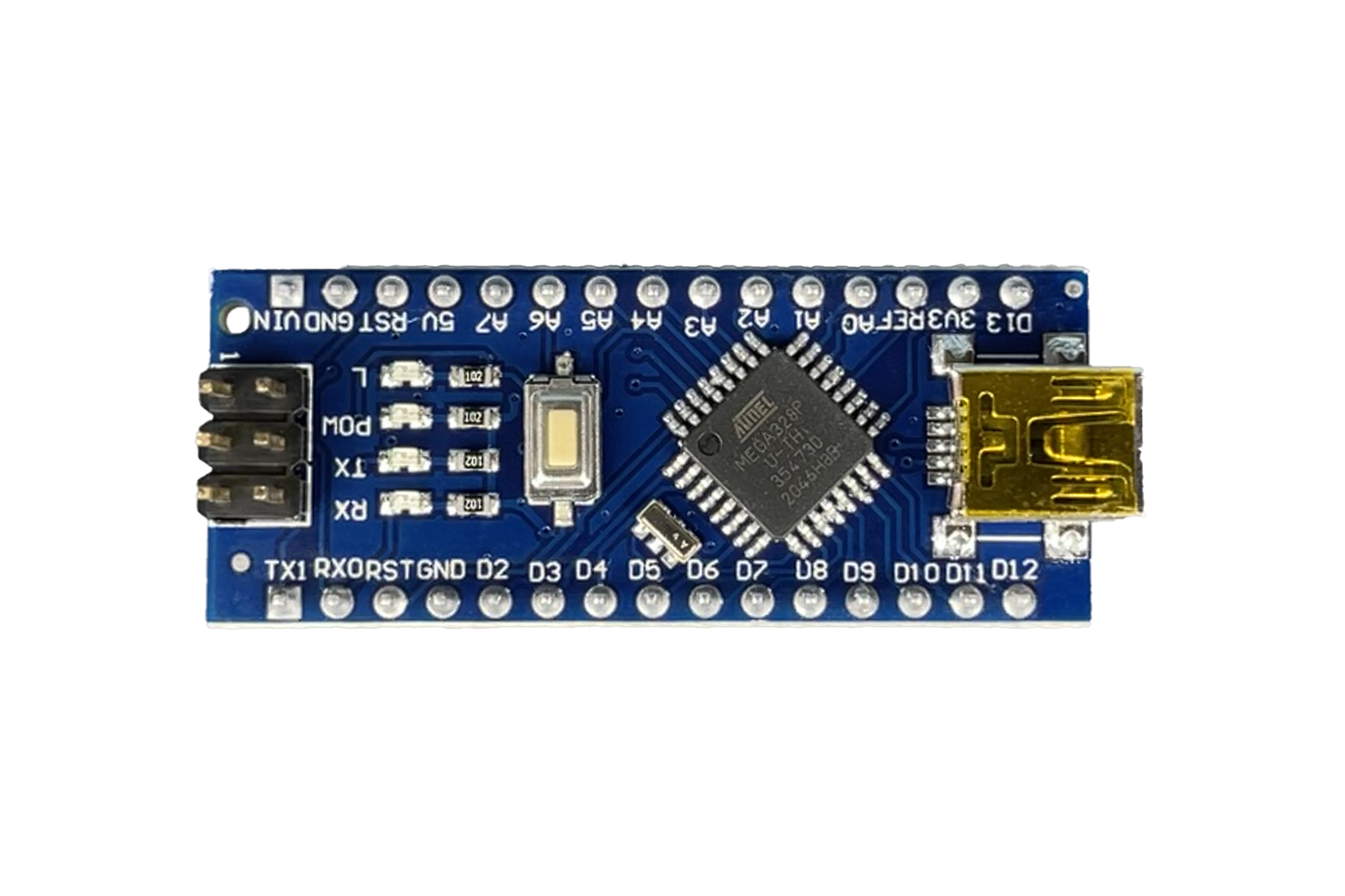

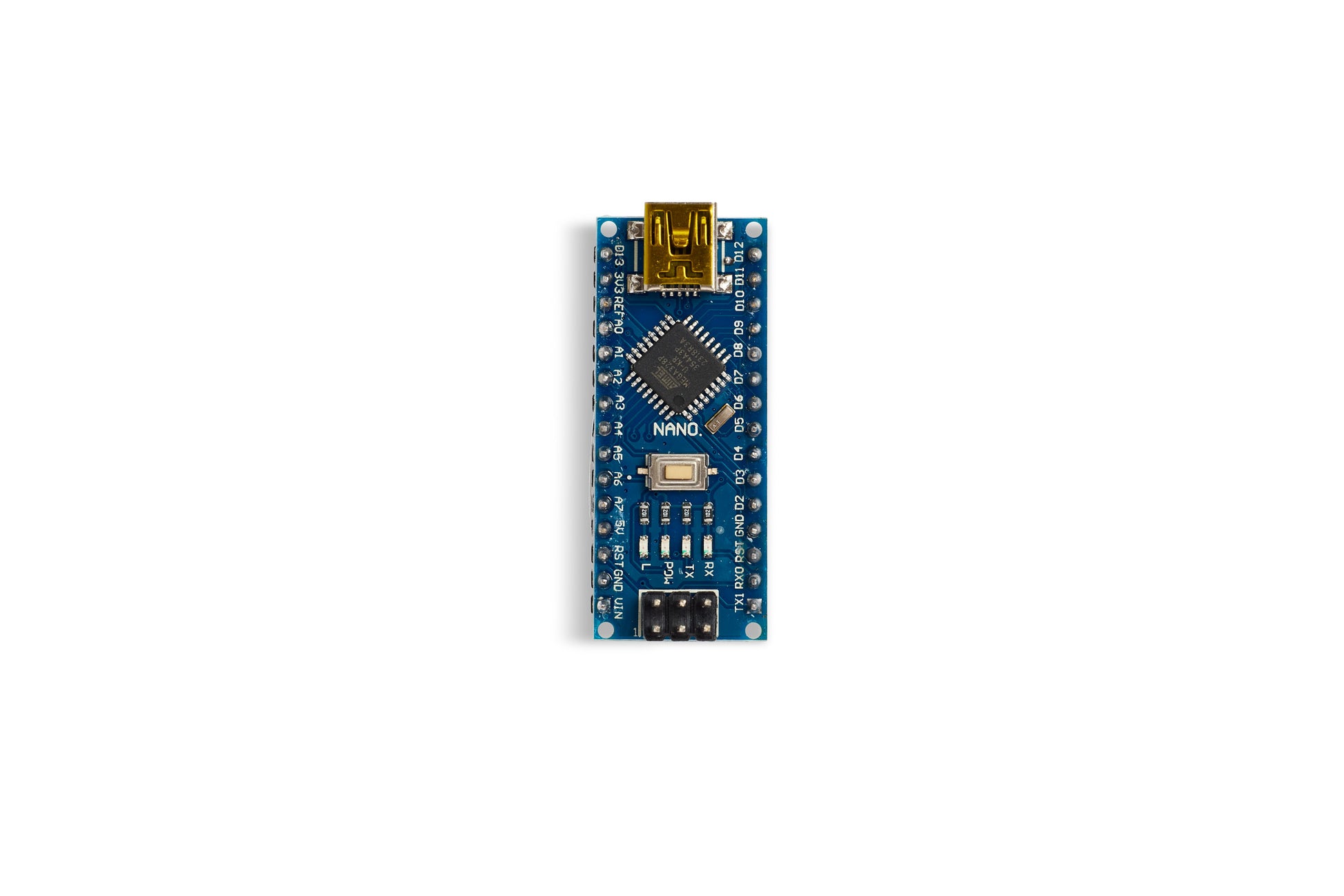

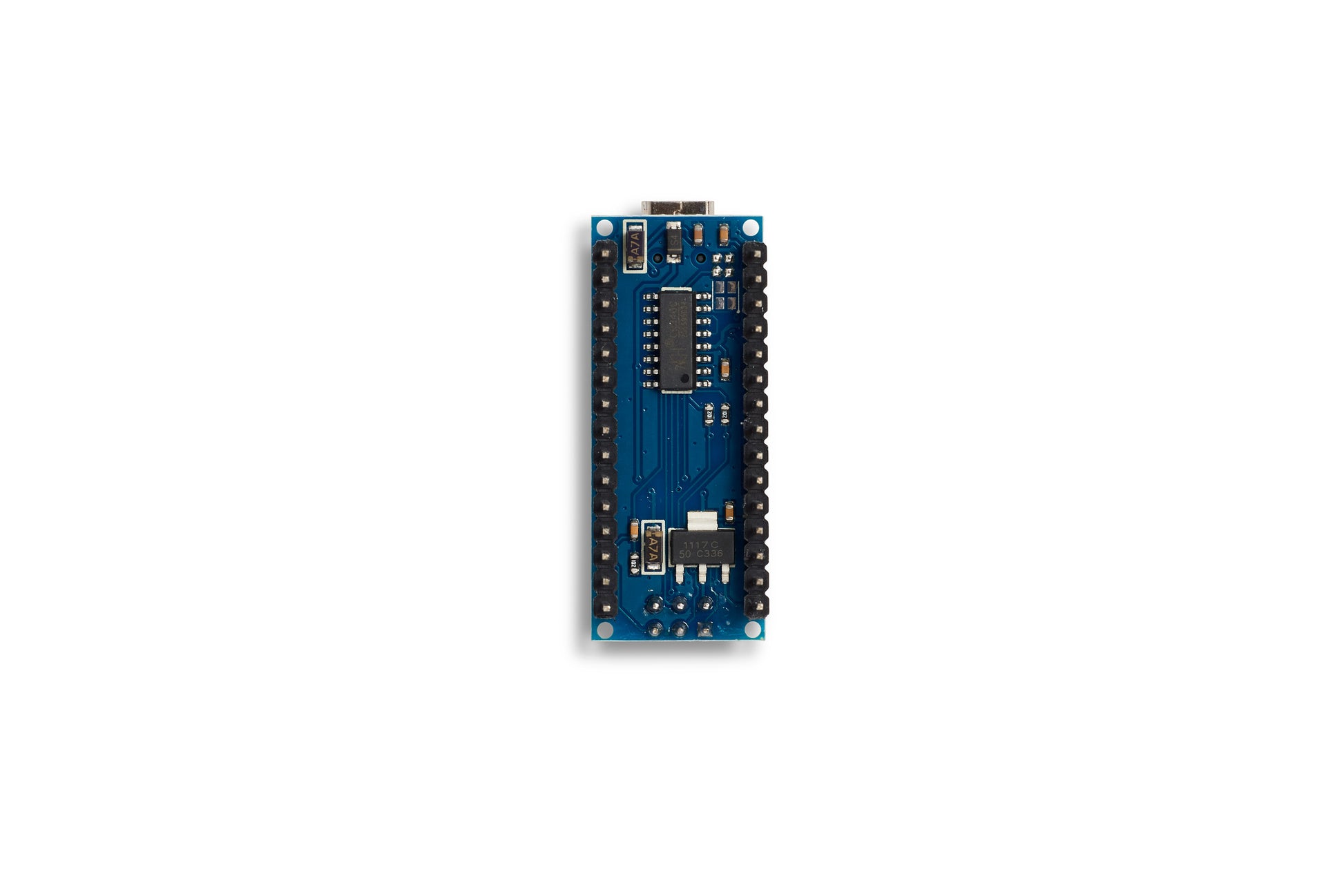

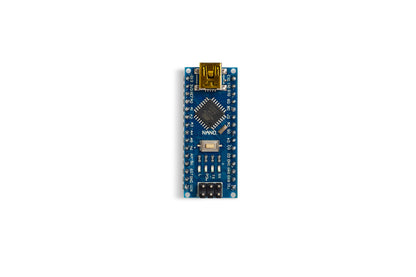

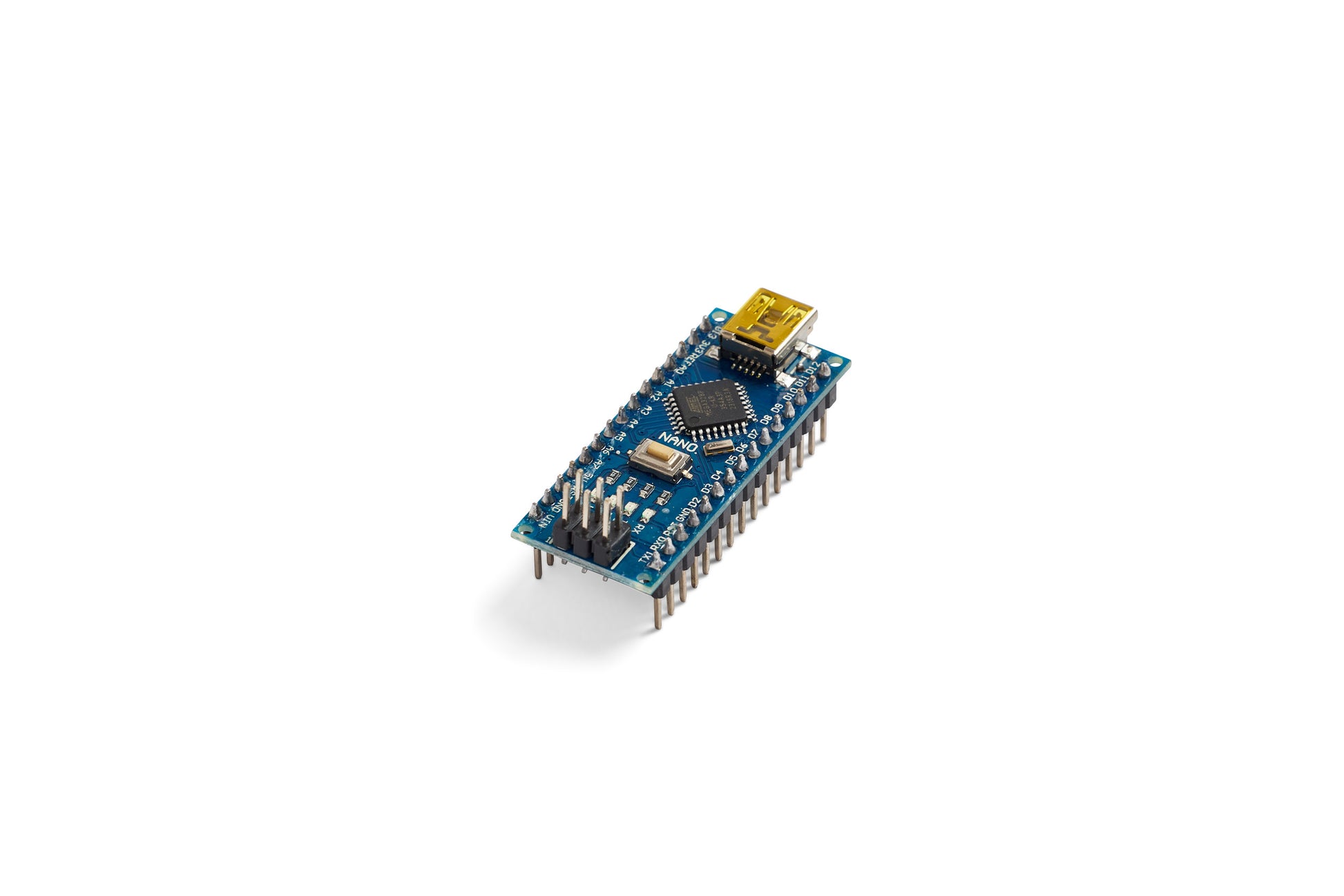

The Nano Board is a small, complete, and breadboard-friendly board based on the Atmega328P. The Nano Board arrives pre-soldered and can be powered via the Mini-B USB connection, a 7-12V unregulated external power supply (connected to pin 30 - VIN), or 5V regulated external power supply (pin 27 - 5V). The power source is automatically selected to pull from the highest voltage source. The Nano Board also has a variety of functions for communicating with a PC and other microcontrollers. It is one of the best ways to get started with learning and programming the Arduino programming language.
What's Included:
- TechBox Nano Board Microcontroller - The Nano Board does not require any soldering and is Arduino compatible.
Board Features:

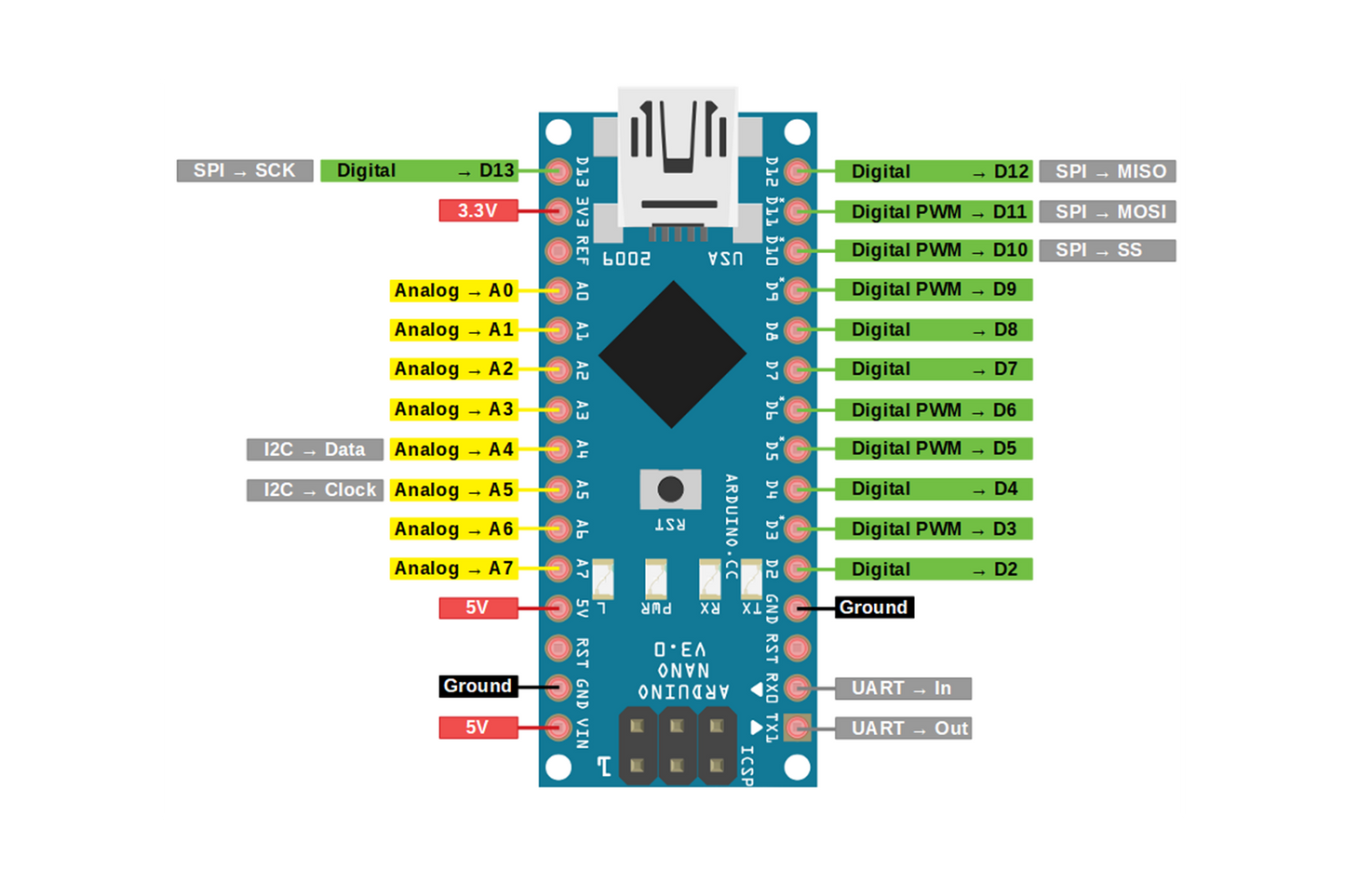

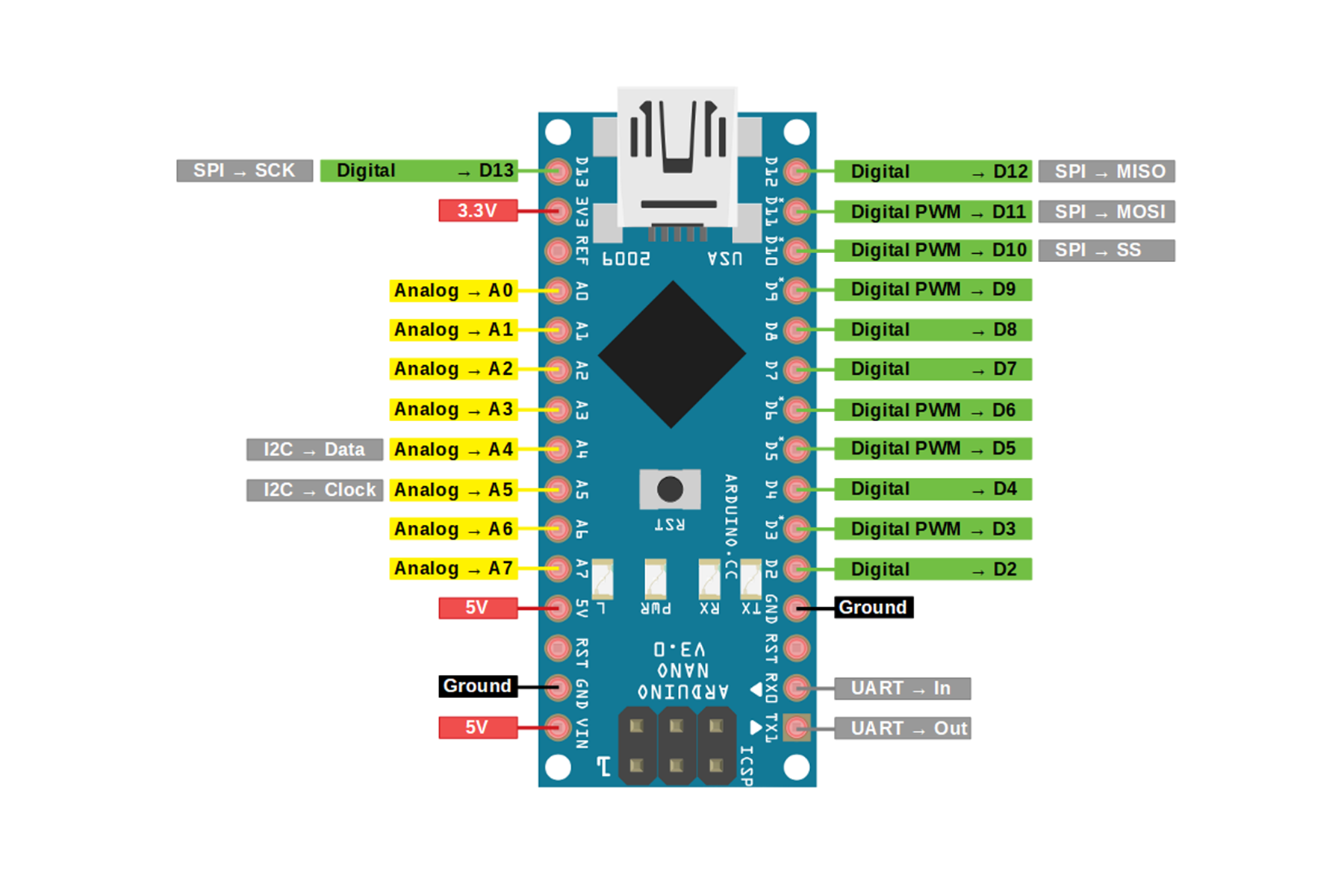

- Inputs & Outputs - Each of the 14 digital pins on the Nano can be used as an input or output, using pinMode(), digitalWrite(), and digitalRead() functions.

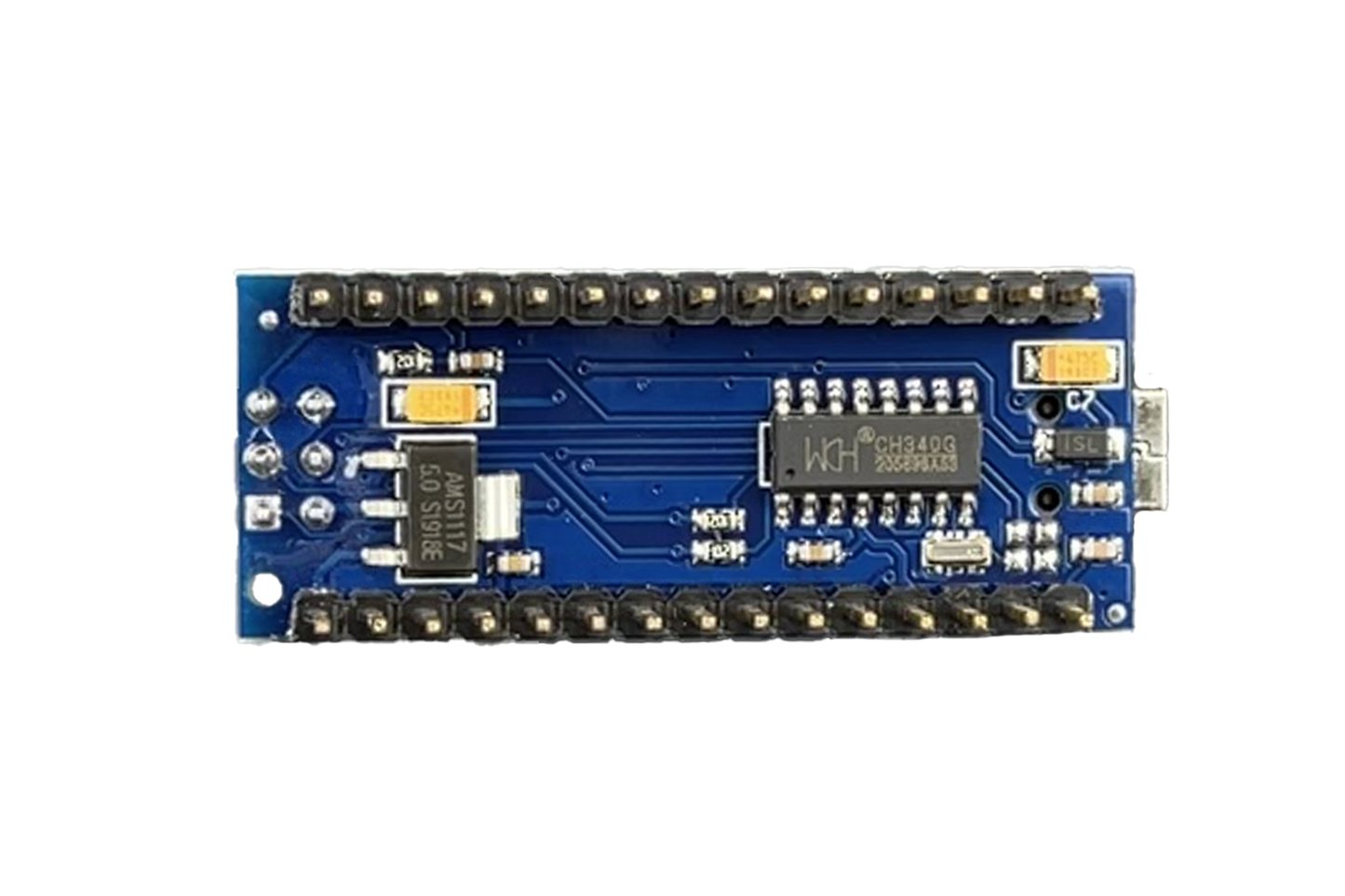

- Serial - Pin 0 (RX) and Pin 1 (TX). Used to receive (RX) and transmit (TX) TTL serial data. These pins are connected to the corresponding pins of the CH340G USB chip.
Product Dimensions:
- (x1) - 1.9"L x 0.4"W x 0.7"D (48x10x18mm)
- 0.25 Oz. (7g)
What Educators are Saying
Real feedback from educators using TechBox.
"My students had such a great time with their Tech Boxes. Many, were so excited to accomplish the task that they were ready to take them home to continue the lesson.
You know what else was cool? All the kids who were running around after the lesson with Tech Boxes in their arms bragging to other students and fielding questions about them - they were so excited and proud!"
"TechBox offered the hands-on interactive & educational component to Centre College's high school STEM camp that we needed! The Laser Stem Matrix introduced the students to wiring bread boards and programming, and it sparked the interest of some potential engineers in the group! With a range of exposure to technology and electronics, TechBox was able to meet the needs of everyone - from the beginner to the experienced. The instructions were easy to follow and offered educational lessons throughout for those who had less experience."

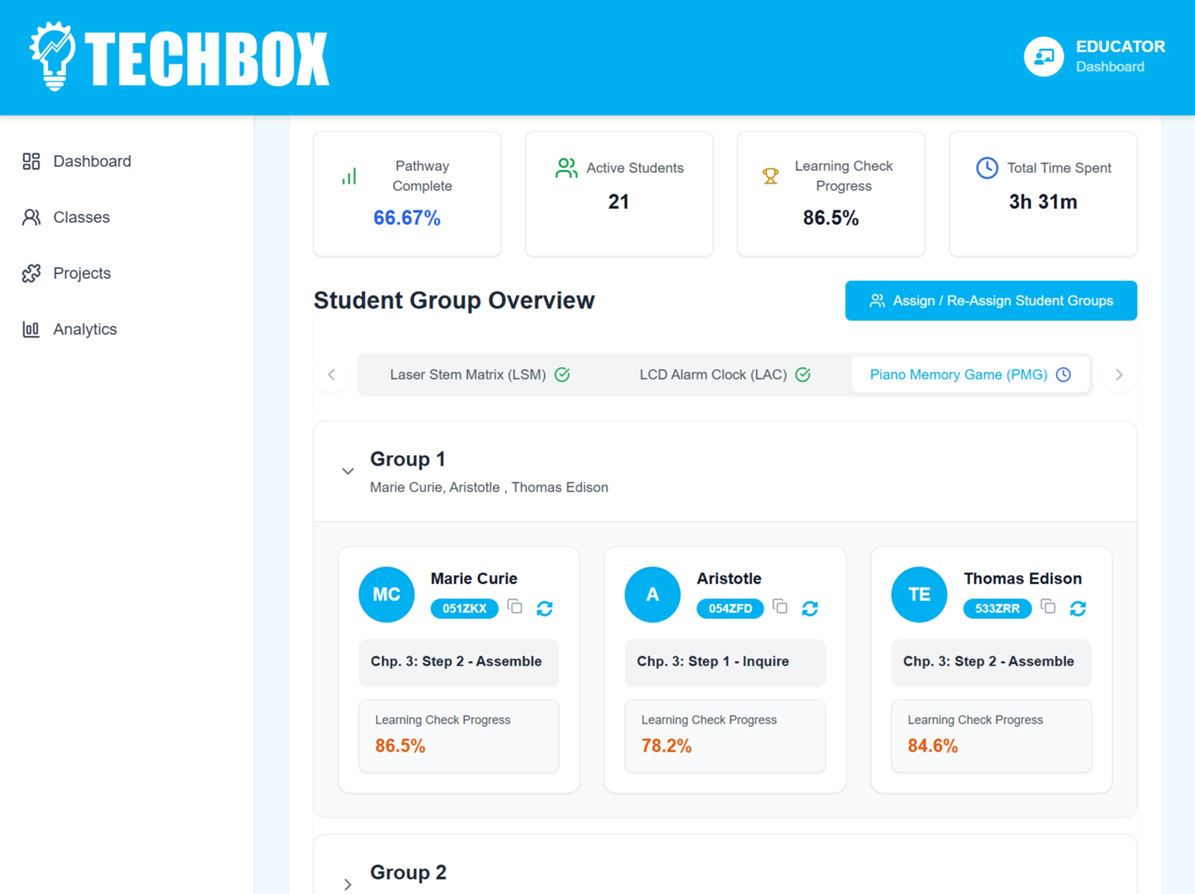

The Educator Dashboard
